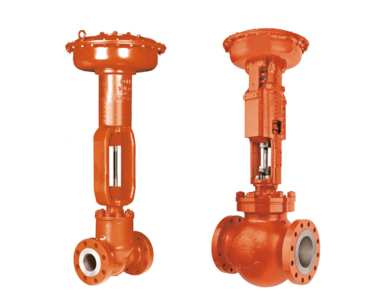

Nuclear Control Valves

Product Category:

Nuclear Valves

With over 45 years of expertise in engineering and manufacturing, Copes-Vulcan is a trusted leader in advanced valve solutions for the nuclear sector. Our General Service and Severe Duty control valves are designed for a wide range of reactor types, including Boiling Water Reactors (BWR), Heavy Water Reactors (CANDU), Small Modular Reactors (SMRs) and Pressurized Water Reactors (PWR).

Where to Buy
Nuclear Control Valves

Nuclear Applications

Our cutting edge valve solutions support critical nuclear applications, including:

  • Feedwater (Start-up, Main)
  • Atmospheric Dump Sampling
  • High Pressure Safety Injection
  • Reactor Coolant
  • Service Water (RHR)
  • 3-Way Diverting & Converting Closed Cooling Water

Our control valve designs are in accordance with ANSI B16.1, B16.5, B16.11, B16.25, B16.34. Copes-Vulcan also holds the following certifications that can be applied to the GS-Style Globe valve: ASME Section I, ASME Section III N & NPT, 97/23/EC-PED-CE and is also ISO-9001 certified.

Nuclear Severe Duty Control Valves

The SD-Severe Duty control valve is Copes-Vulcan's premier solution for severe duty and critical service

applications. Engineered for next-generation performance, this advanced control valve is designed to withstand the most demanding operating conditions, ensuring superior reliability, efficiency and durability in severe duty environments.

  • Repeatable class V tight shutoff
  • High pressure balanced
  • Full plug guiding with anti-rotation
  • Steam atomisation of the cooling water
  • Low coolant pressure required
  • High water capacity for large cooling duties
  • High turndown ratio for both steam and water
  • Extremely flexible
  • Low maintenance
  • Quick-Change’ trim design no special tools required

Nuclear General Service Control Valves

The GS-General Service control valev is designed for general service applications, these globe-style control valves feature advanced body configurations, precision-engineered trims, and state-of-the-art actuation. The result is a highly refined valve assembly that offers superior performance, reliability, and cost efficiency.

  • Streamlined globe-style body minimizes flow restriction and maximizes capacity.
  • Optimized design ensures high strength while keeping weight low.
  • Available in sizes 0.75–8" (20–200mm), ANSI 150–600, with various material and connection options.
  • Quick-Change’ trim design no special tools required

Trims & Pneumatic Actuators

Trims

At the heart of any control valve is the trim. Designed to handle demanding service caused by the thermodynamics of the system: noise, high velocity, cavitation, flashing and high pressure drop. Our Copes-Vulcan trim set includes: Hush™, Raven™, Soft seated Hush™, Unbalanced single seat plug throttling, Cav B9, Top guided, One stage Hush™ and Cascade.

Pneumatic Diaphragm Actuators

Series 700 Actuators: Pneumatic diaphragm operators with spring return, available in both direct-acting (fail-open) and reverse-acting (fail-closed) models. These actuators can be equipped with various springs to accommodate a wide range of forces acting on a valve plug. Additionally, an integrated adjustment mechanism allows fine-tuning of spring pre-compression for optimal performance.

Series 1000 Actuators: Designed for severe-duty applications where shock and vibration are present. Rigorously tested for seismic and environmental conditions, they meet the stringent requirements for nuclear applications.
