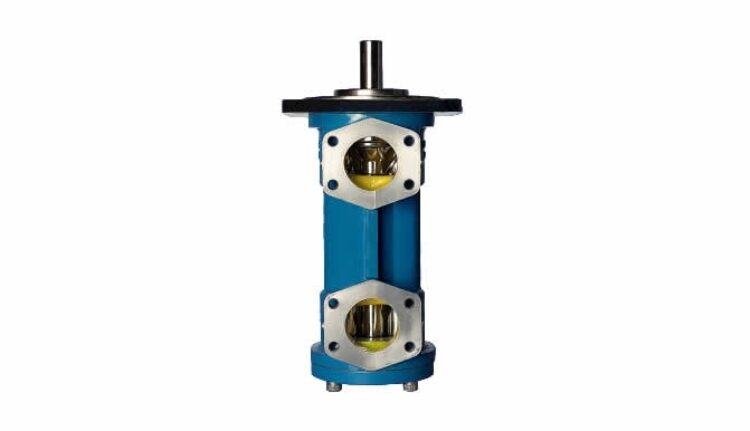

TRIRO Three Screw Pump - T-Range
Product Category:
Three Screw
The Plenty T-range screw pump is designed as a low cost general industrial pump for clean liquids.
Where to Buy
Description
The T-range is designed as a low cost general industrial pump for clean liquids. It is constructed in high grade cast iron and features mechanical seal and integral relief valve as standard.
Smaller T-range pumps are generally available ex stock with the larger units available on very short lead times.
Free standing, horizontal, vertical and tank top mounted units are available, close coupled to electric motors.
Unitization
Pumps can be supplied bareshaft or assembled with the driver in various arrangements including vertical tanktop, pedestal and baseplate options, with spacer or non-spacer couplings and non spark guards.
Specifications
Capacity | 0.2 to 68.0 M3/hr | 1 to 300 USGPM |
|---|---|---|
Discharge Pressure | up to 20 Bar | 290 Psi |
Suction Pressure | up to 2.5 Bar | 35 Psi |
Viscosity | 2 to 1750 cSt | 33 to 8100 ssu |
Temperature | -20 to +200 C | -4 to 390° F |
*Higher viscosities can be accommodated on request
