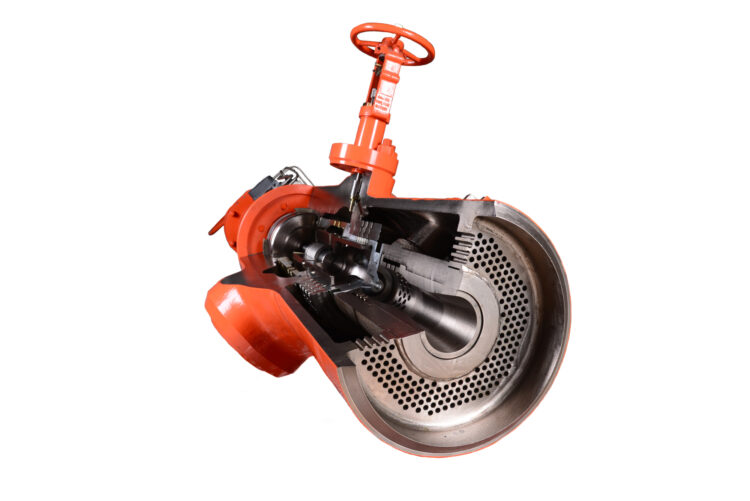

Direct Steam Conditioning Valve - Steam Atomization (DSCV-SA)

Features

The DSCV-SA is generally used for Turbine Bypass applications where the valves typically remain closed for long periods of time to isolate steam flow.:

• Cast & fabricated design.

• Wide size configuration
• Extremely flexible

  • Flanged or butt weld connections
  • ANSI 150 4500, standard, intermediate and split classes
  • Minimum straight line lengths required

• High water capacity for large cooling duties

• Low required coolant pressure

• High coolant turndown ratio

• Pressure seal or bolted bonnet; ‘Quick Change’ design trim

• Repeatable class V tight shutoff

• High pressure balanced

• High turndown ratio for both steam and water

• Noise attenuating trim options

  • Single stage hush

  • Multi-stage hush

  • RAVEN

• ‘Quick-Change’ trim design no special tools


The DSCV-SA (Direct Steam Converting Valve - Steam Atomization) is designed for unprecedented operational reliability and eliminates potential risks associated with substandard designs during plant start-up, shutdown and turbine trips. As a result, the DSCV-SA is at the forefront of modern thermodynamic engineering in steam conditioning.
