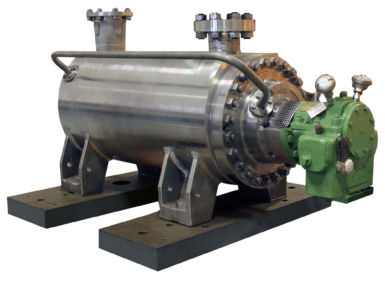

Nuclear Auxiliary / Emergency Feedwater Pump
Product Category:
Nuclear Pumps
In the event of a main feedwater system failure, Auxiliary (Emergency) Feedwater Pumps provide a critical alternative water supply to the reactor to maintain safe operating conditions. These pumps can be either Motor-Driven or Turbine-Driven. Motor-Driven pumps typically operate using power supplied by a backup diesel generator, while Turbine-Driven pumps are powered by the steam produced by the reactor itself.
Where to Buy
Emergency Feedwater Pump Types
To meet the specific needs of your project, we offer a comprehensive selection of pump types for Emergency Feedwater applications, including our high-performance CUP-BB5HP, CUP-BB2 and CUP-TWL™ pumps.
Features
- Heavy-duty construction ensures exceptional reliability and a very high mean time between failures, even in the most demanding applications
- Reliable operation at elevated temperatures is ensured by various cooling methodologies
- Stringent API noise and vibration limits are met due to a rigid pump body with 180 or 360-degree bearing support
- Simple construction of CUP-BB5 pump offers ease of maintenance and reliability
- Specifically designed for the high pressure, high temperature and high speed service.
- CUP-BB5 pumps are among the most robust in the industry with superior design features providing long and trouble free operation
- Fully compliant with the latest edition of API 610 & API 682
Technical Specifications
CUP-BB2 Pump
- Capacity up to: 1,500 m3/hr / 6,600 USgpm
- Delivery up to: 700 m / 2,300 ft
- Temperature up to: 427 °C / 800 °F
- Speeds up to: 3,600 rpm
- Flange drilling: ANSI or BS
CUP-BB5 Pump
- Capacity up to: 12,330 Usgpm / 2,800 m3/hr
- Delivery up to: 13,450 ft / 4,100 m
- Temperature up to: 350 0F / 180 oC
- Speeds up to: 6,600 rpm
- Flange drilling: ANSI or BS
We can accommodate higher temperatures, capacities and pressures by providing specialized equipment, engineered to meet your specific requirements.
